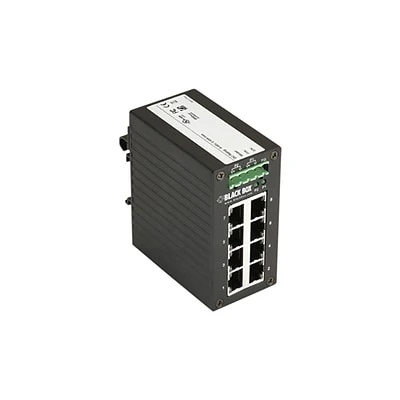

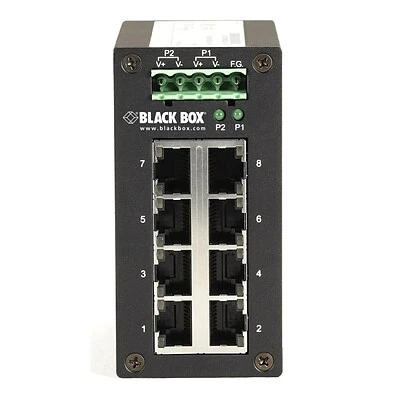

The Hardened Gigabit Edge Switch brings eight Gigabit Ethernet ports to harsh industrial environments with temperatures ranging from 14 to 158° F (-10 to +70° C). Its rugged steel enclosure mounts on standard DIN rails. Dual DC power inputs enable redundant power provisioning. Ethernet ports are autosensing 10/100/1000 Mbps with Auto MDI/MDI-X on all ports. This industrial switch does not include a power supply. For a compatible non-hardened power supply, order the Power Adapter, 100 – 240-VAC to 12-VDC, Flying Leads (PS012); for a hardened power supply, order the External 100 – 240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord (PS003A).
-
Eight 10-/100-/1000-Mbps RJ-45 ports.
-
Extended temperature range of 14 to +158F (-10 to +70C).
-
9-48VDC power input.
-
Includes DIN rail mount kit.
-
Dimensions: 3.5″H x 1.8″W x 3.1″D
-
Power: 9-48 VDC via (2) 5-pin terminal blocks
-
Approvals: CE, RoHS
-
Humidity: 5-95% noncondensing
-
5 Year Double Diamond Warranty (Standard) warranty already included
-
Power Requirements: 4.05 Watts maximum
-
Connectors: (8) RJ-45
-
Indicators: LEDs: Power, LAN (10/100/1000)
Gigabit Ethernet (1000-Mbps) Hardened Temperature Switch – (8) 10/100/1000-Mbps Copper RJ45
