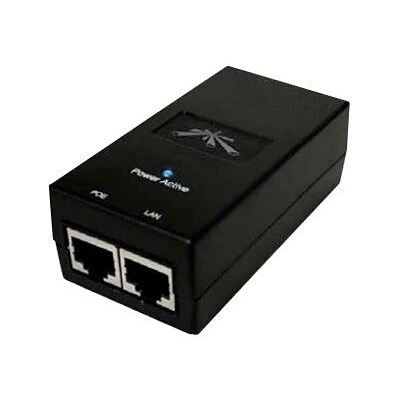

Ubiquiti™ Networks™ 48 VDC 24 W Power over Ethernet injector features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord features an power LED to indicate status and has input voltage of 110 – 220 VAC.
-
Frequency: 47 – 63 Hz, 65 kHz switching
-
Dimensions: 1.3″(H) x 3.47″(W) x 2.24″(D)
-
Interfaces/ports: Input ports: 1 x RJ-45 ethernet,
-
Power: Output: 24 W, input voltage: 110 – 220 VAC, 48 VDC output, input current: 600 mA at 110 VAC, 400 mA at 220 VAC, 500 mA output
-
Efficiency: 80+%, output ripple: 1%, regulation: + or – 1% line, + or – 3% load, peak pulse current: 36A (10/1000microsecond) data
-
Operating temperature: -10 – +60 deg C, Operating humidity: 5 – 90% non condensing
-
Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power
-
Shunt capacitance: <5 pf data, response time: <1 nS, 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
-
Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
-
Weight: 4.78 oz.
